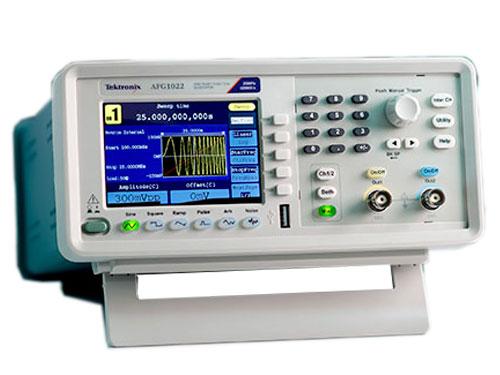

With 25 MHz or 60MHz bandwidth, 2 output channels, 1 mVpp to 10 Vpp output amplitude across full bandwidth, Tektronix AFG1000 Arbitrary/Function Generator generates all kinds of waveforms needed in a lab. Most importantly, it offers the best value for money in the Tektronix line-up of arbitrary function generators.
Features |
Benefits |
| Dual-channel, 25MHz bandwidth with 1mVpp to 10Vpp output; 14-bit vertical resolution and 1uHz frequency resolution | Generate more precise waveforms for more accurate lab result. |
| 50 built-in arbitrary waveforms with continuous, modulation, sweep and burst modes | Generate all kinds of waveforms needed in a lab. |
| Dedicated 3.95” TFT LCD display, easy-to-navigate front panel and menu | Provide easy access for users to conduct experiments. |
| Built-in 200MHz, 6-digit frequency counter | Measure frequency/period/pulse width/duty cycle in a precise way without a standalone frequency counter. |
| Standard 5 year warranty | Better user experience guaranteed by Tektronix quality and service. |
| Model | Analog Bandwidth |
Analog Channels |
Output Frequency |
Record Length |
Sample Rate |
Vertical Resolution |
|---|---|---|---|---|---|---|
| AFG1022 | 25 MHz | 2 | 1 uHz to 25 MHz | 8k points | 125 MS/s | 14-bit |
| AFG1062 | 60 MHz | 2 | 1 uHz to 60 MHz | 8k points | 300 MS/s | 14-bit |
