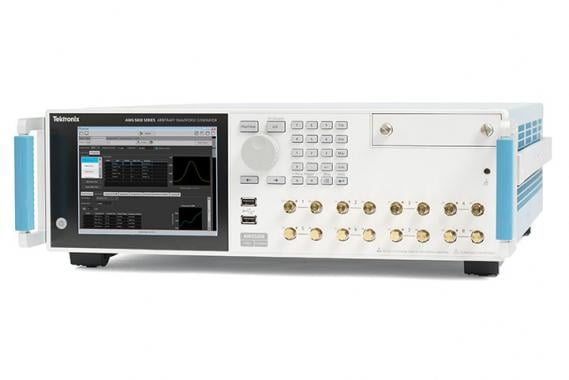

AWG5200

The AWG5200 Arbitrary Waveform Generator meets demanding signal generation needs with high signal fidelity and the ability to scale up to 32 or more channels with multi-unit synchronization at an affordable price. Ideal for advanced research, electronic test and radar, and electronic warfare system design and test.

Memory

2 GS/channel
Channels

Up to 8
Vertical Resolution

16 bits
Sample Rate

298 S/s - 5 GS/s



Model Analog
Channels		 Vertical
Resolution		 Analog
Bandwidth		 Output Frequency Max
Sample Rate
AWG5202 2 16 bit 2 GHz (at -3 dB x) Direct DC Out: 1.5Vp-p Diff /// Direct AC Out: -17 to -5 dBm single-ended, BW 10MHz to 2GHz (standard) /// Amp AC Out: -85 to +10 dBm single-ended, BW 10MHz to 2GHz (option) 1.5 KS/s – 10 GS/s (4 GHz)
AWG5208 8 16 bit 2 GHz (at -3 dB x) Direct DC Out: 1.5Vp-p Diff /// Direct AC Out: -17 to -5 dBm single-ended, BW 10MHz to 2GHz (standard) /// Amp AC Out: -85 to +10 dBm single-ended, BW 10MHz to 2GHz (option) 1.5 KS/s – 10 GS/s (4 GHz)
AWG5204 4 16 bit 2 GHz (at -3 dB x) Direct DC Out: 1.5Vp-p Diff /// Direct AC Out: -17 to -5 dBm single-ended, BW 10MHz to 2GHz (standard) /// Amp AC Out: -85 to +10 dBm single-ended, BW 10MHz to 2GHz (option) 1.5 KS/s – 10 GS/s (4 GHz)



Key features

  • Complete solution for complex RF signal generation in a single box
    • Direct generation of signals with carriers up to 4 GHz, removing the need for external RF conversion
  • Simulate real-world analog effects on high speed digital data streams
  • Generate high precision RF signals
    • Spurious Free Dynamic Range performance better than -70 dBc
  • Create long complex waveforms without compromising bandwidth
    • Up to 2 GSamples of Waveform Memory plays 400 ms of data at 5 GS/s and 800 ms of data at 2.5 GS/s
  • Synchronize multiple units to achieve a multi-channel high speed AWG system
  • Fully operational without external PC
    • Built-in display and buttons make it possible to quickly select, edit, play waveforms and trigger on events directly from the AWG front panel
  • Simulate real-world environments by playing back captured signals
    • Waveforms captured with Oscilloscopes or Real-Time Spectrum Analyzers can be played back, edited or re-sampled on the AWG
  • Smooth transition from simulation to the real-world testing environment
    • Waveform vectors imported from third-party tools such as MATLAB
