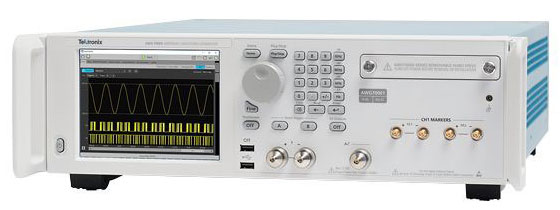

AWG70000B Arbitrary Waveform Generato

The AWG70000B Series Arbitrary Waveform Generator represents the cutting edge in sample rate, signal fidelity and waveform memory, making it ideal for design, testing and operations of complex components, systems and experiments. With up to sample rate of 50 GS/s and 10-bit vertical resolution, it delivers the industry’s best signal stimulus solution for easy generation of ideal, distorted and “real-life” signals.

What’s New

  • Optional memory expansion up to 32 Gigasamples
  • Streaming Waveform ID
  • Windows 10 support
Sample Rate

50 GS/s
Memory

2 Gsamples/channel
32 Gsamples (Optional)
Resolution

10 bits
Model Analog
Channels		 Vertical
Resolution		 Analog
Bandwidth		 Output
Frequency		 Max Sample
Rate		 Record Length
AWG70002B 2 8, 9, or 10 bits Up to 13.5 GHz 10 GHz 25 GS/s 2 GS, 16 GS
(Optional)
AWG70001B 1 8, 9, or 10 bits Up to 15 GHz 20 GHz 50 GS/s 2 GS, 32 GS
(Optional)



Key features

  • Complete solution for wideband RF signal generation in a single box
    • Direct generation of wideband signals with carriers up to 20 GHz, removing the need for external RF conversion
  • Simulate real-world analog effects on high speed digital data streams
    • Model signal impairments up to speeds of 12.5 GB/s
  • Generate high precision RF signals
    • Spurious Free Dynamic Range performance better than -80 dBc
  • Create high speed baseband signals for optical transmission with the vertical resolution to handle higher order complex modulation
    • 10 bits of vertical resolution at a sample rate of 50 GS/s
  • Create long waveforms scenarios without building complex sequences
    • Up to 32 GSamples of Waveform Memory plays 640 ms of data at 50 GS/s
  • Synchronize multiple units (manually or with the AWG Synchronization Hub) to achieve a multi-channel high speed AWG system
  • Fully operational without external PC
    • Built-in display and buttons make it possible to quickly select, edit and play waveforms directly from the front panel of the AWG
  • Simulate real-world environments by playing back captured signals
    • Waveforms captured with Oscilloscopes or Real-Time Spectrum Analyzers can be played back, edited, or re-sampled on the AWG
  • Smooth transition from simulation to the real-world testing environment
    • Waveform vectors imported from third-party tools such as MATLAB
  • Sequencer with Streaming ID
    • Control the Sequencer directly via a network interface connection
